PVS-14 Helmet Military IR Digital Night Vision Monocular Optics Sight Infrared Night Vision Goggles
Specification
|
Product Model
|
NVG10 Helmet Night Vision Monocular
|
|
Optical magnification
|
1x
|
|
Digital magnification
|
3x
|
|
Objective lens diameter
|
18mm
|
|
Focal length
|
20mm
|
|
Camera type
|
CMOS
|
|
Camera pixel
|
1920*1080
|
|
Optical resolution
|
≤11”
|
|
Display image resolution
|
1280*720
|
|
Battery type
|
18650x1
|
|
Field of view
|
25.5°x14.5°
|
|
Diopter adjustment
|
±5
|
|
Infrared power
|
1W
|
|
wavelength
|
850nm ( Illumination infrared )
|
|
Infrared lamp illumination
|
adjustment level 3
|
|
Exit pupil diameter
|
Ø7
|
Product Description

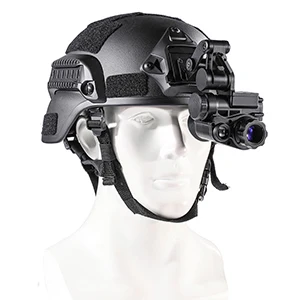

This NVG10 night vision could mount on the helmet and head, free your hands to use.
Pursuit of quality, refuse in general, full dark
avaliable night vision with optical system，professional mounts accessories，easy to working. It can be watched at night, and it can be used in a complete dark environment
1. Head-mounted night vision monoculars, 1:1 viewing angle, free your hands, suitable for night hunting and other outdoor activities.
2. The laser illumination adopts 850NM/940NM optional, 940NM non-burst red laser, which has good concealment and non-exposure.

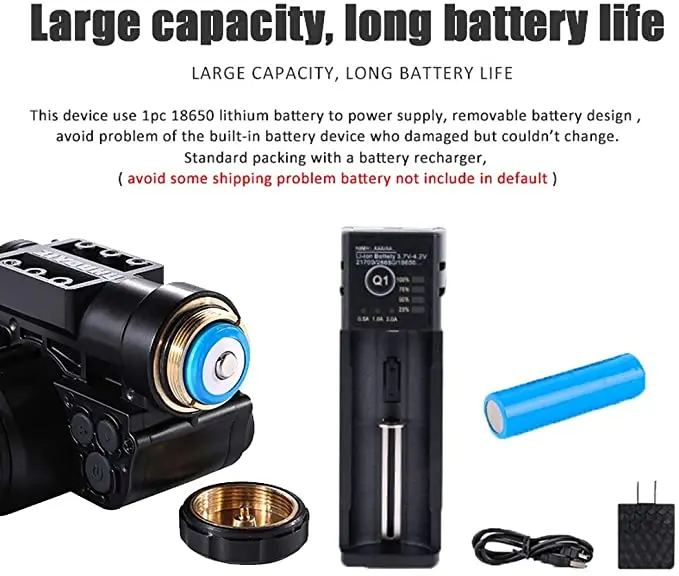

3. Removable battery design avoids the problem that the battery device is damaged but cannot be replaced.
4. Multi-layer broadband cost lens design to ensure high light transmittance and high refractive index, making the image clearer and brighter in the field of view.
5. Imaging Mode Switch：Imaginf display color could be switch when use in the full darkness environment could be in black and white imaging, also switch to green color imaging. According your request to meet differrent environment.
2. The laser illumination adopts 850NM/940NM optional, 940NM non-burst red laser, which has good concealment and non-exposure.
3. Removable battery design avoids the problem that the battery device is damaged but cannot be replaced.
4. Multi-layer broadband cost lens design to ensure high light transmittance and high refractive index, making the image clearer and brighter in the field of view.
5. Imaging Mode Switch：Imaginf display color could be switch when use in the full darkness environment could be in black and white imaging, also switch to green color imaging. According your request to meet differrent environment.
